HSY800 double sided hydraulic press block machine

HSY800 block making machine,Double hydraulic press block machine,concrete block making machine,

Share To :
  • Product Details

hydraulic brick making machine

The hydraulic brick making machine uses the way of up and down pressure to compact bricks, so it is not suitable for producing too high bricks, which is easy to cause uneven compactness of bricks up and down. Specifically, it is suitable for producing bricks with a height of 40-120mm, similar to colored bricks, pavement bricks, etc.

in addition, the hydraulic brick making machine is suitable for producing non perforated bricks, because when it is used to produce perforated bricks, the damage rate will be relatively high, Causing damage. Although the production of hydraulic brick machine has some limitations, but customers can choose according to their actual needs, hydraulic brick machine is good at what it is good at. In addition, its production process is characterized by low noise, which is beyond the reach of the vibration molding brick machine. If the local noise supervision is relatively strict, the hydraulic brick machine is undoubtedly a suitable choice.


There are many kinds of cement bricks produced by hydraulic brick making machine, such as autoclaved lime sand brick, antique brick, imitation brick, pavement brick, color brick, ordinary cement brick, hollow brick, etc. This depends on the hydraulic brick machine technology and production process advantages.

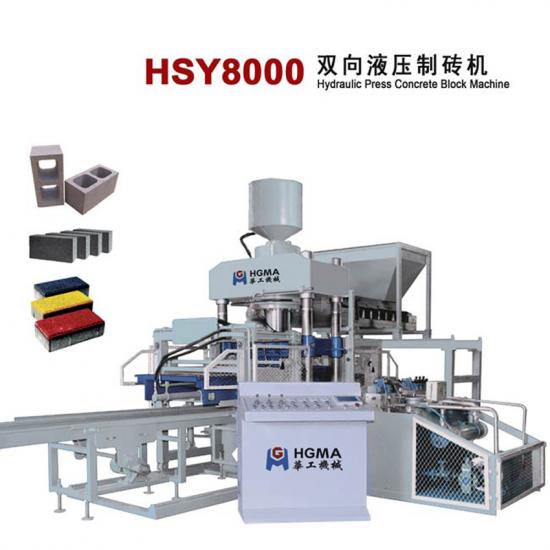

HGMA HSY800 type automatic bin-direction hydraulic molding machine, consists of host machine, electric appliance, control system, hydraulic system, pneumatic system, multifunctional conveyor system, stacking system, feeding unit into a fully automatic production line.


Hydraulic brick making machine is a kind of mechanical equipment which uses stone powder, fly ash, slag, slag, gravel, sand, water and so on as raw materials to produce cement brick by static pressure driving force.

Additional Information:

No.

8000kN(800t)

01

Item

Specification

Mould/pcs

Hollow Ratio

02

Solid Brick

240×115×52

28pcs

Solid

03

8 holes block

240×115×90

14pcs

≈17%

04

11 holes block

240×115×90

14pcs

≈23%

05

11 holes block

240×190×90

8pcs

≈30%

06

Max height of feeding material

≤300mm

07

Molding cycle

18 S ~20S

08

Molding ways

Double head floating frame

09

Feeding car frame structure

Fixed rotating feeding material

Pneumatic clamping brick

10

Rated pressure

31.5Mpa

11

Allowable pressure

25Mpa

12

Power

90kW

13

Weight

32000 kg
