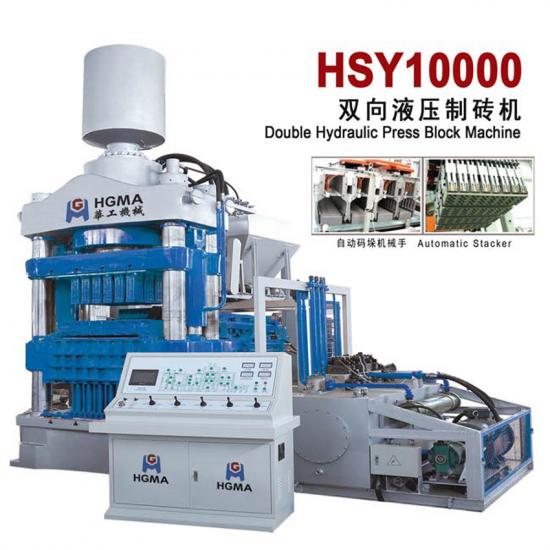

HSY1000 hydraulic press concrete block making machine

1000T hydraulic press block machinee brick making machine is the production of fly ash autoclaved brick main equipment, fly ash autoclaved brick is fly ash or other slag or lime as raw materials, add lime, gypsum and aggregate, the embryo material preparation, pressing molding, high-efficiency steam Conservation and other technology made.

Share To :
  • Product Details

HSY1000 hydraulic Block Machine is given priority to hydraulic pressure, its electric control system adopts PLC programmable procedure, integrates machine、 electricity、 gas and liquid, by pushing board, feeding material, crush molding. The hydraulic extrusion products process, molding fast, power saving, products structure highly strength, no pollution, lower noise, energy saving function etc. Equipped with a man-machine interface system, the automatic fault diagnosis, remote monitoring, automatically monitoring of production operating procedures.

TECHNICAL DATA

UNIT

HSY1000

Max. pressing force

KN

10800

Max. ejecting force



262

Max. plunger stroke

mm

150

Max. distance between

press table and plunger

mm

385

Max. distance between

press table and plunger

mm

535

Span between columns

mm

1400

Useful width of plunger

mm

515

Max. flling depth

mm

60

Working cycles in idle stroke

min'

26

Strokes per cycle

times

2-3

Power of the main motor

KW

55

System oil capacity

L

900

Air consumption

m'/h

0.2

Water consumption at 24C

m'/h

4

Weight of the press body

t

30.1
