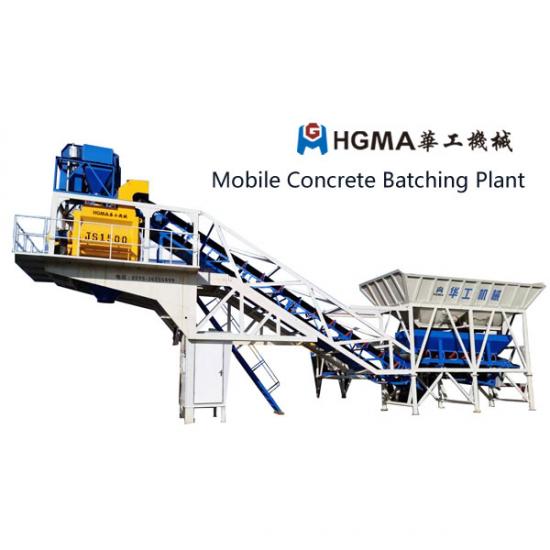

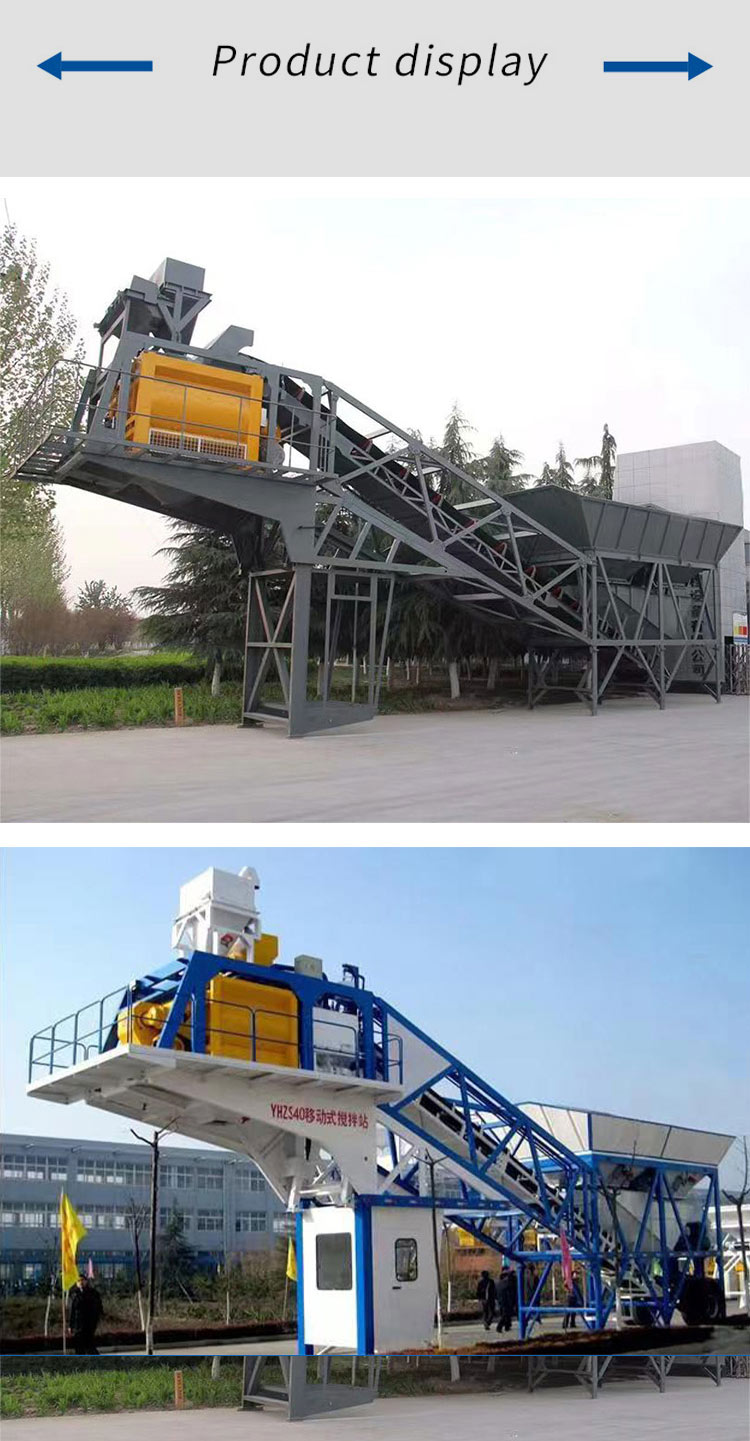

Mobile Concrete Batching Plant

Mobile concrete batching plant is a new type concrete mixing equipment which is movable. It is uniquely designed with a simple and compact structure.

Share To :

Inquire Now

Product Details

HGMA Mobile concrete batching plant is a new type concrete mixing equipment which is movable. It is uniquely designed with a simple and compact structure.

One unit assembles a whole working set of aggregating, weighing, conveying and mixing system, enabling its great overall mobility.

Parameters:

Model	YHZS25/30	YHZS35/40	YHZS50/60	YHZS75/85
Capacity	25~30 m3/h	35~40 m3/h	50~60 m3/h	75~85 m3/h
Aggregate Bins	4×4 m3	4×5 m3	4×6 m3	4×7 m3
Aggregate Loading Type	Transfer Conveyor	Transfer Conveyor	Transfer Conveyor	Transfer Conveyor
Mixer Capacity	JS500 Mixer	JS750 Mixer	JS1000 Mixer	JS1500 Mixer
Control System	SIEMENS PLC + PC	SIEMENS PLC + PC	SIEMENS PLC + PC	SIEMENS PLC + PC
Cement Screw	Ø 219 mm	Ø 219 mm	Ø 219 mm	Ø 273mm
Cement Silo	50ton	60ton	80ton	100ton
