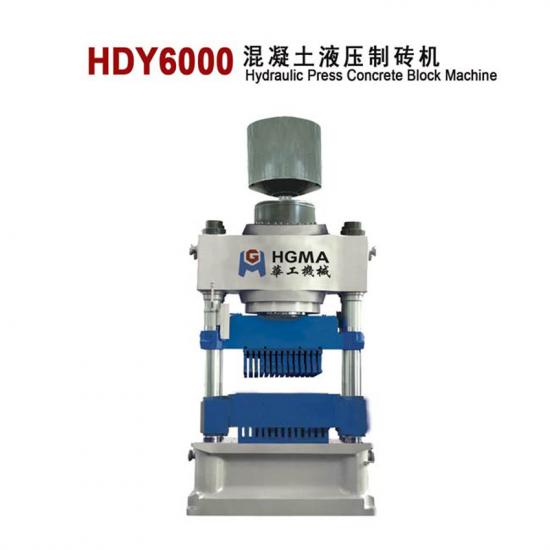

600T Brick Making Machine,HDY600 type automatic bin-direction hydraulic molding machine, consists of host machine,electric appliance, control system, hydraulic system, pneumatic system, multifunctional conveyor system, stacking system, feeding unit into a fully automatic production line.
HDY600 hydraulic Block Machine is given priority to hydraulic pressure, its electric control system adopts PLC programmable procedure, integrates machine、 electricity、 gas and liquid, by pushing board, feeding material, crush molding. The hydraulic extrusion products process, molding fast, power saving, products structure highly strength, no pollution, lower noise, energy saving function etc.
Equipped with a man-machine interface system, the automatic fault diagnosis, remote monitoring, automatically monitoring of production operating procedures.

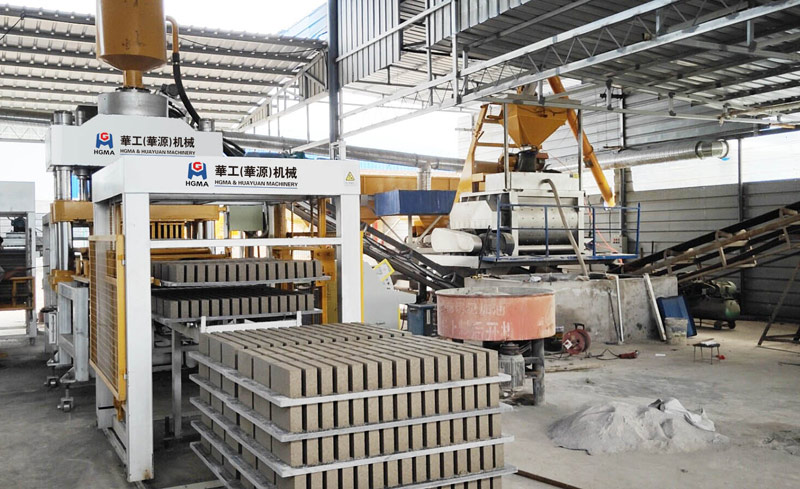

HDY600 type automatic bin-direction hydraulic molding machine, consists of host machine,electric appliance, control system, hydraulic system, pneumatic system, multifunctional conveyor system, stacking system, feeding unit into a fully automatic production line. Through the optimization of the design program, optimizing the performance of reliable domestic and foreign well-known manufacturers of hydraulic electrical unit accessory, relate the parts organically, realize the automation of production process.
Name / type |
HSY600 |
Mixer Model |
JS750 |
Host size |
3300×2610×3750(mm) |
Molding cycle |
15-20(S) |
Weight |
25(T) |
Host power |
48.7(kw) |
Rated pressure |
31.5(MPA) |
Plant area |
800 (㎡) |
PRODUCT |
Specifications |
HSY600 PCS/MOLD |
Molding cycle |
SOLID BRICK |
240×115×53 |
30 |
15-20 S |
2 HOLES |
220×105×65 |
28 |
25-30 S |
4 HOLES |
180×80×80 |
28 |
25-30 S |
6 HOLES |
120×180×80 |
21 |
25-30 S |
6 HOLES |
220×150×115 |
18 |
25-30 S |
