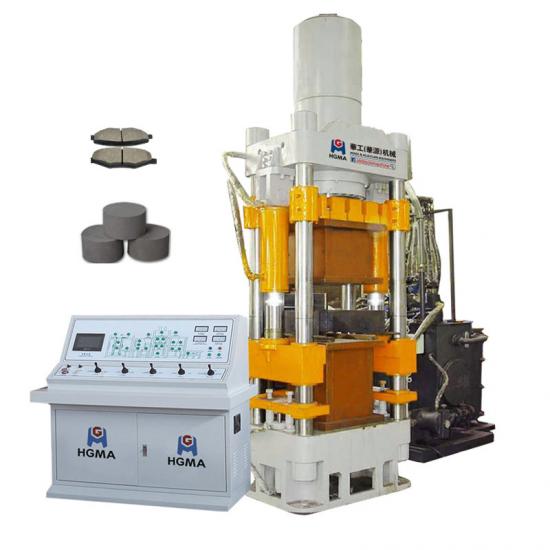

600ton Powder metallurgy hydraulic press machine

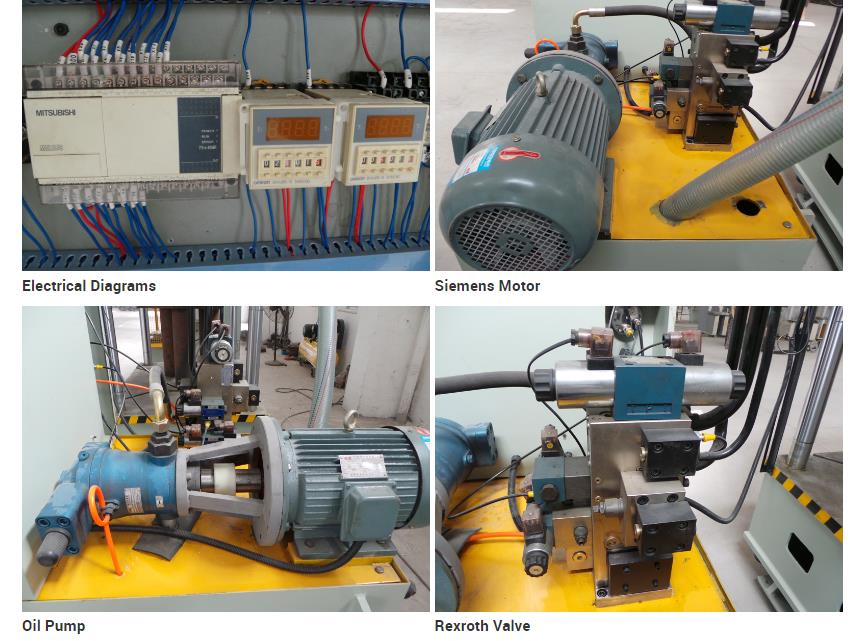

The hydraulic system of this machine includes motors, oil pumps, control valve manifolds, oil tanks and other systems and various connecting pipelines. The pipelines of the hydraulic system are all connected by high-pressure flanges to avoid leakage of hydraulic oil. All oil pipes are pickled before welding, and then after welding slag, deburring and secondary pickling to ensure the cleanliness of the hydraulic pipeline.

Share To :
  • Product Details

600ton Powder metallurgy hydraulic press machine technical Features
  1. Four columns are made of high-strength quality round steel with surface hardened via high-frequency treatment, and electroplated after grinding. Good abrasion resistance is guaranteed.
 2. Production efficiency is high with fast falling speed of the moving bolster.
 3. Pressure, stroke and pressurizing time can be adjusted according to processing requirement.


 4. Designed with PLC programming circuit and touch panel operating system. Easy and convenient to operate.
 5. Optional configuration: protective shielf, LED lighting and infrared grating, etc.

600ton Powder metallurgy hydraulic press machine technical parameter

Specification

Unit

600T

Nominal force

KN

6000

Max. pressure of liquid

MPa

25

Stroke of slider

mm

900

Max. opening height

mm

1500

Working table size

mm*mm

2200x1600

Speed of slider

Descent speed

mm/s

120

Working speed

mm/s

5-12

Return speed

mm/s

80

Motor power

KW

22x2
