Automatic block making machine

/QT12-15 Automatic block making machine
Products
★ ★ ★

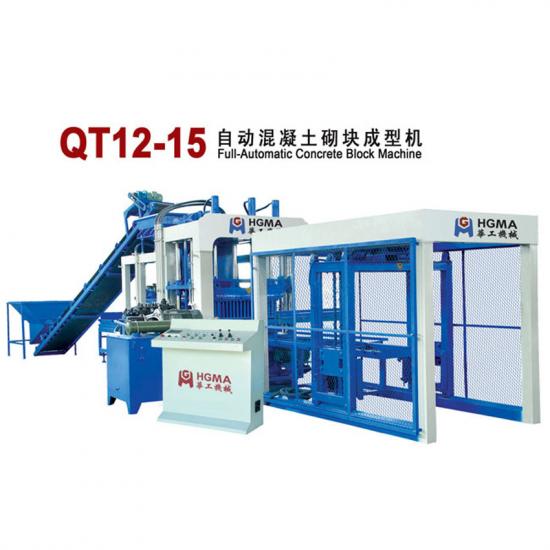

QT12-15 Automatic block making machine

HGMA QT12-15 Automatic block making machine adopt high strength steel and special weilding technology manufacturering, very strong.height and compactness of the function of control, the exciting force, simple operation, easy maintenance and reliable operation.
Share To :
  • Product Details

1. HGMA QT12-15 block making machine running automatically, using hydraulic transmission, double cloth(basic material and color fabrics), vibration pressure, height and compactness of the function of control, the exciting force, simple operation, easy maintenance and reliable operation.

Main technical advantages of QT12-15 automatic brick machine:

A.Machine Frame: adopt high strength steel and special weilding technology manufacturering, very strong.

B.Oriented column: made of special steel ,chrome plated, and can bear powerful suppress and wears well.

C.Mould head: mechanical and electrial hydraulic synchronous drive, the same height error rarely plate products,good products consistency.

D.Material feeder: senser with hydraulic drive technology, using swing car cloth and arch broken bodies, have forced the centrifugal blow down, cloth quickly, particularly favorable to thin-walled hole more products.

Additional Information:

Cycle Time
15-20(s) Total Power 46.6(kw)
Vibration Type hydraulic vibration Motor Frequency 50hz
Machine Dimension 11500*4550*2800(mm) Pallet Size 1350*880*25(mm)
Vibration Force 150KN Gross Weight 14200kg

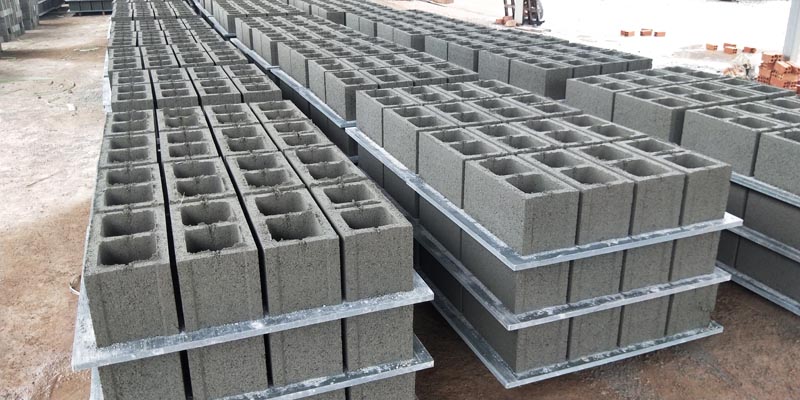

Hollow Blocks 390x190x190mm
12 17280-23040
Porous Bricks 240x115x90mm
30 43200-57600
Interlocking Block 200x100x60mm
42 50400-60480
Solid Bricks 240x115x51mm 60 90720-120960
