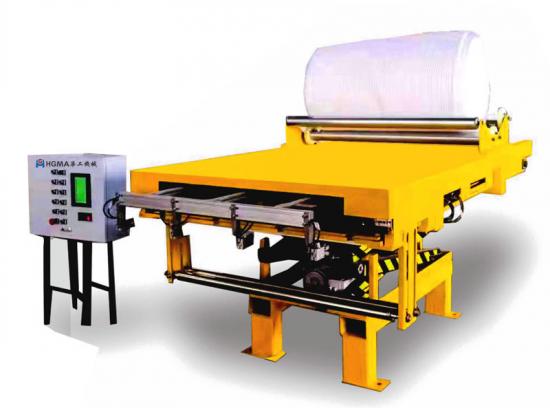

Cement brick stacking film wrapping machine

Cement brick stacking film wrapping machine,cement brick stack automatic laminating machine
Share To :
  • Product Details

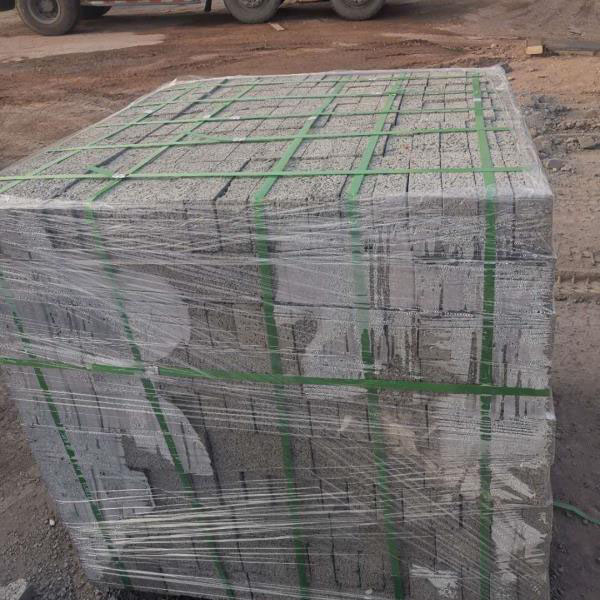

When stacking floor tiles or concrete blocks, add a layer of film between each layer to protect the product surface.

The equipment is controlled by PLC, the touch screen adjusts the parameters, and the stepper motor pneumatic system executes. The automatic work can be done according to the different requirements of customers.

• The total power of the equipment is 1.5Kw (not including the lifting mechanism), connected to 220V single-phase power supply, and the air pipe is ø12 hose. The pressure of the air pressure system is 8KG/cm


The total weight of the equipment is 600KG

The equipment transportation size is: length X width X height = 2500X1400X1700mm (this size is the size of a single laminating machine, excluding lifting frames, etc.).

The width of the film laid by the equipment is 800-1000mm

The maximum length of standard equipment laying is 1400mm.

The maximum stroke of the equipment is 1600mm.

The operating temperature of the equipment is 75-85 degrees
