Brief Introduction of QT18-15 block machine running automatically, using hydraulic transmission, double cloth(basic material and color fabrics), vibration pressure, height and compactness of the function of control, the exciting force, simple operation, easy maintenance and reliable operation.
Main technical advantages of QT8-15 automatic brick machine:
A.Machine Frame: adopt high strength steel and special weilding technology manufacturering, very strong. B.Oriented column: made of special steel ,chrome plated, and can bear powerful suppress and wears well.
Mould head: mechanical and electrial hydraulic synchronous drive, the same height error rarely plate products,good products consistency. D.Material feeder: senser with hydraulic drive technology, using swing car cloth and arch broken bodies, have forced the centrifugal blow down, cloth quickly, particularly favorable to thin-walled hole more products.
|
Cycle Time |
15-20(s) | Total Power | 38.1(kw) | |||||
| Vibration Type | hydraulic vibration | Motor Frequency | 50hz | |||||
| Machine Dimension | 9800*3600*2800(mm) | Pallet Size | 900*840*25(mm) | |||||
| Vibration Force | 85KN | Gross Weight | 10500kg | |||||
| Hollow Blocks |
390x190x190mm |
8 | 11520-15360 | ||||||
| Porous Bricks |
240x115x90mm |
18 | 25920-34560 | ||||||
| Interlocking Block |
200x100x60mm |
28 | 31600-40320 | ||||||
| Solid Bricks | 240x115x51mm | 42 | 60480-80640 | ||||||

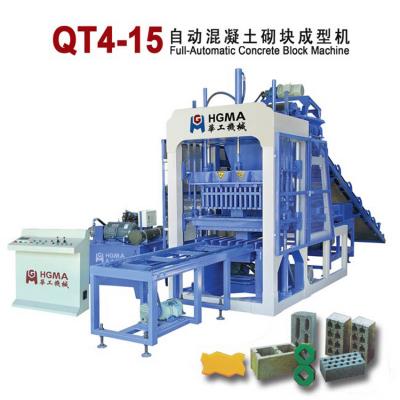

Leave A MessageQT4-15 concrete block making machine is according to china's national conditions, combining the maiority of the new and old customers device improved design of a new machine with the production og hig
QT6-15 cement brick machine is the most popular non burning brick machine in the market. The main features are: large output, many molds, reasonable production of all kinds of bricks, and low investment pressure. It is the most cost-effective model and the best-selling model
Qt5-15 block forming machine is the most popular concrete brick machine in the market. The main features are: large output, many molds, reasonable production of all kinds of bricks, and low investment pressure. It is the most cost-effective model and the best-selling model
HGMA QT12-15 Automatic block making machine adopt high strength steel and special weilding technology manufacturering, very strong.height and compactness of the function of control, the exciting force, simple operation, easy maintenance and reliable operation.
QT10-15 block machine running automatically, using hydraulic transmission, double cloth(basic material and color fabrics), vibration pressure, height and compactness of the function of control, the exciting force, simple operation, easy maintenance and reliable operation.
The automatic brick soaking machine is controlled by a PLC controller, which adjusts different soaking times for different bricks. Good for palletizing
The hydraulic system of this machine includes motors, oil pumps, control valve manifolds, oil tanks and other systems and various connecting pipelines. The pipelines of the hydraulic system are all connected by high-pressure flanges to avoid leakage of hydraulic oil. All oil pipes are pickled before welding, and then after welding slag, deburring and secondary pickling to ensure the cleanliness of the hydraulic pipeline.
Siemens PLC is a modular micro PLC system, which can meet the performance requirements of medium and low end. Modular, fanless design, easy to realize distributed structure and convenient operation make SIMATIC S7-300 an economic and user-friendly solution for various tasks in medium and low end applications.
