Cement pipe making machine

Cement pipe machine takes sands, stones and cement as raw materials to produce many kinds of reinforced concrete drainage pipe with the length of 1000-4000mm, internal diameter of 200-4000mm with the mouth shapes of flat, tongue and groove and socket and spigot.
  • Product Origin:

    quanzhou
Share To :
  • Product Details

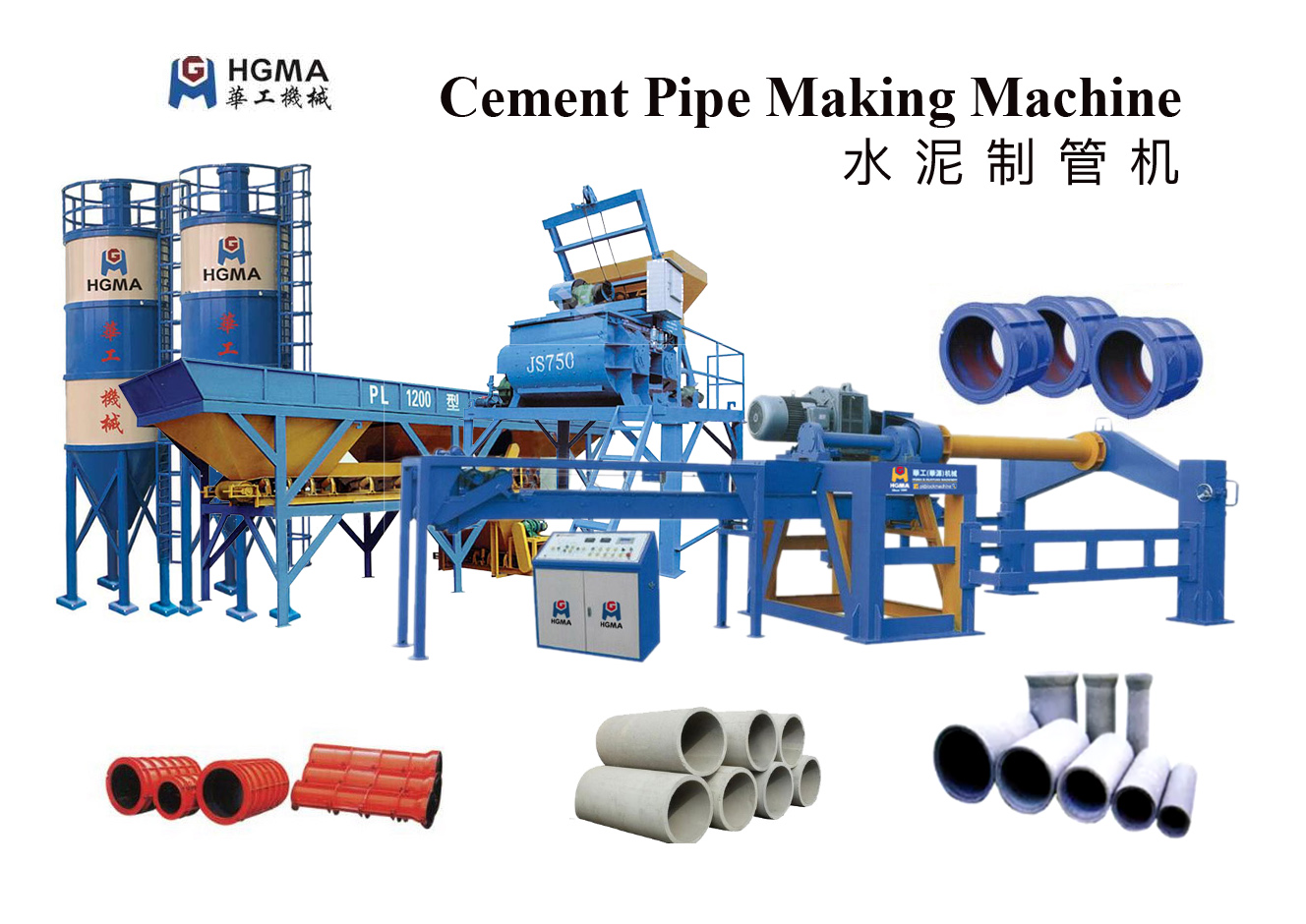

Concrete pipe making machine

The machine takes sands, stones and cement as raw materials to produce many kinds of reinforced concrete drainage pipe with the length of 1000-4000mm, internal diameter of 200-4000mm with the mouth shapes of flat, tongue and groove and socket and spigot. All mechanical indexes have meet the national standards. They have been used widely in deep well, municipal drainage, expressway and other water supply and sewerage works with higher level required. The production efficiency can reach 4-5 piece/hour.


Abrasion of centrifugal concrete pipe machine

 Centrifugal concrete pipe machine is the main equipment of concrete products centrifugal molding, it keeps the mould working continuous. The roller is the main component of centrifugal concrete pipe machine,it is easy to wear during the molding process, so its repair and improvements in structure is getting more and more people's attention. It will effect the normal running of the mould and make it bending deformation if the roller abrasion over a certain rang.

 1. Abrasion of roller The abrasion of roller for centrifugal concrete pipe machine has two kinds, edge abrasion and head face abrasion.Edge abrasion includes uniformity and nonuniform ,which one reduce the roller diameter and another one makes the roller oval.

2. Consequences caused by roller abrasion The nonuniform abrasion can cause the moving of mould,which will not only affect the quality of concrete products,but also will accelerate abrasion. Axial movement of the mold will intesify the abrasion of roller and running wheel.increasing the equipment load, may also cause serious accidents .

3.Repair of roller abrasion Repair methods : remove the roller from the bearing housing, lathe processing, make the most minimum size as a standard-sized for metal cutting margin,it must comply with the relevant technical standards.

Concrete pipe machine Technology parameter

Item

Unit

Model





Double-wheel

Three-wheel

Riding Wheel track

MM

1870

Riding  wheelbase

MM

1500-2800

Riding wheel external diameter

MM

800-920

Riding wheel width

MM

100

Angle between wheel center

 and the center of steel mould

degree)

75-110

The Max. length of molding drainage pipe

M

2-4

The Max. diameter of molding drainage pipe

Plain top/tongue and groove/pipe-jacking

MM

2600

1800



Bell and spigot



1800

1800

The motor power

KW

37-90

55-132

The range of speed of main drive axle

r/min

100-500(continuous)

100-500
