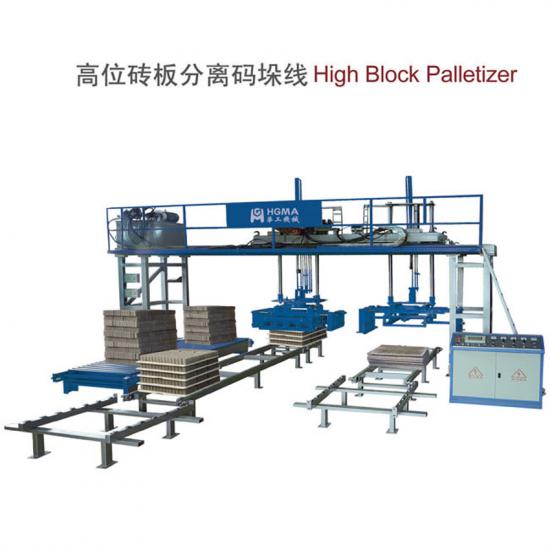

HGMA cement brick palletizing machine is suitable for palletizing palletizing pallet which can be combined into a stack. Equipment includes into the board, or board-type, high-level gantry stacking machine (also supporting low-level push-stacking machine), flap machine, board down machine, a board machine.
HGMA cement brick palletizing machine technical parameters: 1, the whole area: ~ 12000 * 6000 (mm) 2, the total weight: ~ 12000KG 3, the whole power: 23KW 4, clamping size: According to the size of equipment allocated brick 5, palletizing cycle: 20-25 seconds / layer 6, the maximum clamping weight: 500KG 7, the minimum clamping brick high: ≥ 60mm
8, the largest gap between the main jaw: 1100 * 1000mm wide
Brick Pallets Separator for simple block production line stacking defects, I independent research and development company cantilever brick separator can be installed near the brick conservation field, maintenance of semi-finished products on-site stacking pallets to achieve automated brick separation, which is mainly composed of brick code Device, code board device, walking system, lifting system, conveying system, hydraulic system and intelligent control system.
HY300T Paving Brick Making Machine makes a variety of large size curbstones with lengths up to 1000mm. mold-making for different thickness and dimensions can be customized.
fully automatic cement brick winding packaging machine to increase the function of the film from the integration of integrated packaging equipment, to complete the winding packaging and cover the top cover two functions, can form a closed five-sided moisture, rain, dust Packaging. Fully automated unmanned operation, high efficiency, low cost packaging, widely used in food and beverage, chemical fiber chemicals, metallurgy and building materials industries, is to improve the degree of automation of excellent equipment.
The powder forming four column hydraulic press is economical and practical. The hydraulic control adopts the integrated system of plug-in setting valve to reduce the discharge point. It has reliable movement, durability and long service life. The first is the constant pressure realization and the secondary development technology of constant pressure program, which has the function of ensuring the differential pressure delay. The stroke of working pressure can be adjusted within the specified range. The centralized control of buttons can realize manual There are three operation forms: semi-automatic and automatic.
Specification
Unit
400T
Nominal
force
KN
4000
Max.
pressure of liquid
MPa
25
Stroke of slider
mm
500
Max. opening height
mm
1400
Working table size
mm*mm
1000x800
Speed of slider
Descent speed
mm/s
340
Working
speed
mm/s
16-24
Return speed
mm/s
220
Motor power
KW
22x2
As a multi-purpose machine, can produce normal bricks, hollow bricks, multi-holes' bricks by exchanging mold.The machine is on the basis of original concrete block machine, with technological innovation and development. It has rational design, excellent performance, and equipped with powerful vibration motor.
automatic cantilever winding film packaging machine
TECHNICAL SPECIFICATIONS
Package Size
(500-1200)mmx(500-1200)x2200mm(LxWxH)
Lifting parts
Chain guide rail lifting mechanism, the lifting speed can be adjusted by frequency conversion
Cantilever speed
0-20RPM adjustable
Conveyor system
Conveyor line height: 400mm, speed: 8-15mm, bearing capacity: 2000kg
Packaging efficiency
≥25 Torr/h
Control System
PLC control, adjustable parameters, adjustable film length, automatic sensing of cargo size
Membrane system
Electric pre-stretching film, the stretching ratio can reach 250%, and the speed can be adjusted by frequency conversion
Motor Power
Cantilever: 1.1kw; Formwork: 0.37kw; Lifting parts: 0.37kw, top film: 0.37kw
Automatic film breaking device
Automatic clamping and cutting of the film without any tailing, completely automatic completion by no one
power supply
4KVA/AC380V/50Hz, 3PH/N/PE
top membrane
PE/PVC film, width 1800mm, diameter 100-300mm, height 30-100mm
Gas source
0.4-0.6mpa, 350NL/min
Stretch film
LLDPE stretch film, width: 1800mm, thickness: 20-35mm
Equipment size
4500x2200x3500mm(LxWxH)(According to actual situation)
