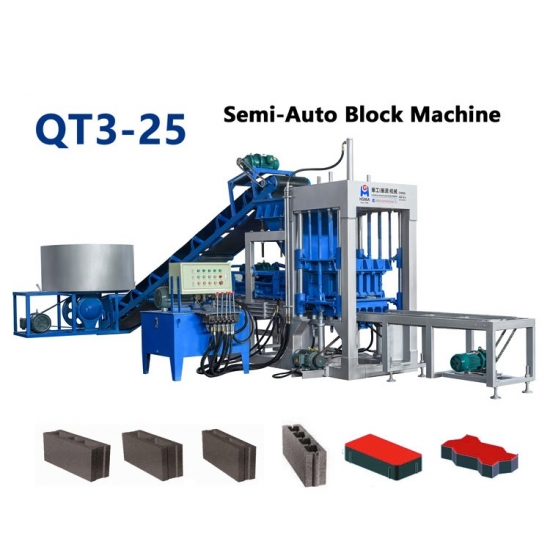

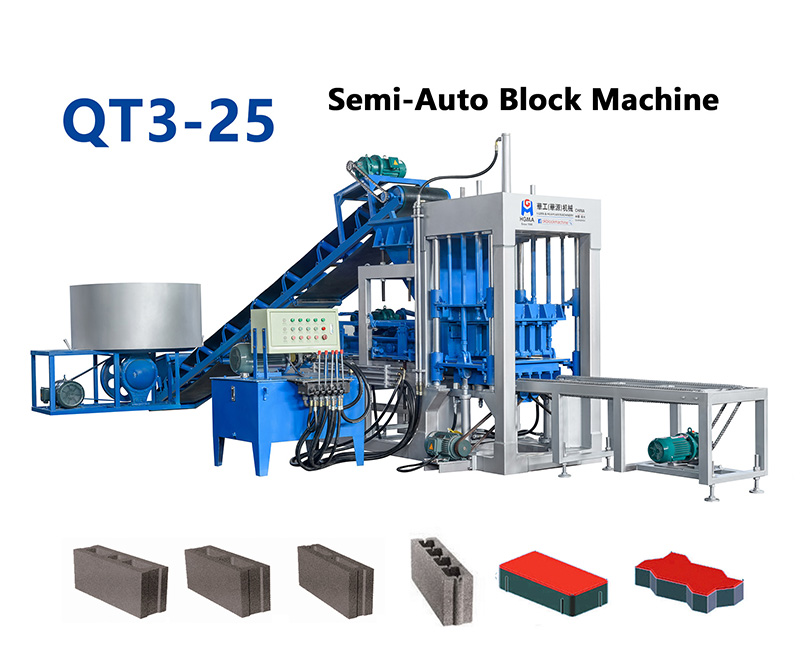

QT3-25 block making machine is according to china's national conditions, combining the maiority of the new and old customers device improved design of a new machine with the production og high quality, durablity strong, high production efficiency, suitable for the production of various high strength environmental protection brick, chain blocks, color tile, parking lot grass brick, hollow brick, ets.
QT3-25making machine running automatically, using hydraulic transmission. double cloth, virbation pressure, height and compactness of the function of control, the exciting force. simple operation, easy maintenance and operation.
Main Technical Parameters
| cycle time | 20-30s | virbation type | hydraulic virbation | |||||
| motor frequency | 50hz | total power | 20.7kw | |||||
| pallet size | 680*535*20mm | gross weight | 3000kg | |||||
| rated pressure | 8.5mpa | machine size | 4000*3500*2300mm | |||||
| block specification | cycle time | production per mould | production per shift(8 hours) | |||||||
| multi-holes block | 240*115*90mm | 10pcs | 9600-12000pcs | |||||||
| standard block | 240*115*51mm | 20pcs | 19200-24000pcs | |||||||
| hollow block | 390*190*190mm | 3pcs | 2880-3600pcs | |||||||
| color paver block | 200*100*60mm | 12pcs | 11520-14400pcs | |||||||
Leave A MessageThe vehicle mounted brick making machine has the comprehensive function of mixing brick making and forming. Two molds and two operation platforms can produce two bricks at a time. The hydraulic cooling system is controlled by the temperature control switch and operates automatically according to the hydraulic oil temperature to reduce energy consumption. The finished product molding is driven by the hydraulic system and the brick making is completed by pressure.
QT4-40 making machine running automatically, using hydraulic transmission. double cloth, virbation pressure, height and compactness of the function of control, the exciting force. simple operation, easy maintenance and operation.
QT4-25 block making machine is according to china's national conditions, combining the maiority of the new and old customers device improved design of a new machine with the production og high quality, durablity strong, high production efficiency, suitable for the production of various high strength environmental protection brick, chain blocks, color tile, parking lot grass brick, hollow brick, ets.
QT4-40 making machine running automatically, using hydraulic transmission. double cloth, virbation pressure, height and compactness of the function of control, the exciting force. simple operation, easy maintenance and operation.
As a multi-purpose machine, can produce normal bricks, hollow bricks, multi-holes' bricks by exchanging mold.The machine is on the basis of original concrete block machine, with technological innovation and development. It has rational design, excellent performance, and equipped with powerful vibration motor.
QTJ4-45 manual hollow concrete block machine is manufactured on the base of technical modification to the original block shaping machines,that is changing the former one -time-vibration into twice-vibration of moulding core.so ,the block density becomes higher,shaping speed quicker and block strenght more even, this model of machine can be suitable to the customers who have any kinds of existing cement working sites, and the consumption pallests can be reduced.
YHZS50/60 concrete batching plant is special construction concrete equipment. It is applied for airport way, wharf, road, bridge and so on, It can also be used for the large and emergency repair construction operation. It can be installed quickly on site.
automatic cantilever winding film packaging machine TECHNICAL SPECIFICATIONS Package Size (500-1200)mmx(500-1200)x2200mm(LxWxH) Lifting parts Chain guide rail lifting mechanism, the lifting speed can be adjusted by frequency conversion Cantilever speed 0-20RPM adjustable Conveyor system Conveyor line height: 400mm, speed: 8-15mm, bearing capacity: 2000kg Packaging efficiency ≥25 Torr/h Control System PLC control, adjustable parameters, adjustable film length, automatic sensing of cargo size Membrane system Electric pre-stretching film, the stretching ratio can reach 250%, and the speed can be adjusted by frequency conversion Motor Power Cantilever: 1.1kw; Formwork: 0.37kw; Lifting parts: 0.37kw, top film: 0.37kw Automatic film breaking device Automatic clamping and cutting of the film without any tailing, completely automatic completion by no one power supply 4KVA/AC380V/50Hz, 3PH/N/PE top membrane PE/PVC film, width 1800mm, diameter 100-300mm, height 30-100mm Gas source 0.4-0.6mpa, 350NL/min Stretch film LLDPE stretch film, width: 1800mm, thickness: 20-35mm Equipment size 4500x2200x3500mm(LxWxH)(According to actual situation)
