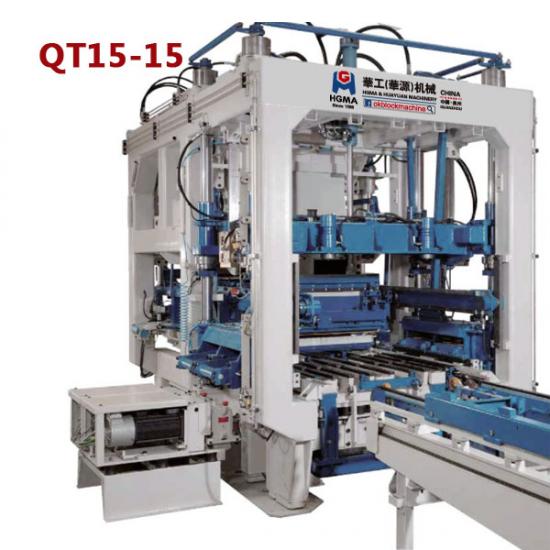

QT15-15 cement brick machine

Qt15-15 automatic hollow brick machine is a large concrete brick making machine developed and produced by Fujian hgma machinery company. The machine adopts optimized hydraulic transmission and has the characteristics of power saving, low noise and low failure rate;

Share To :

Inquire Now

Product Details

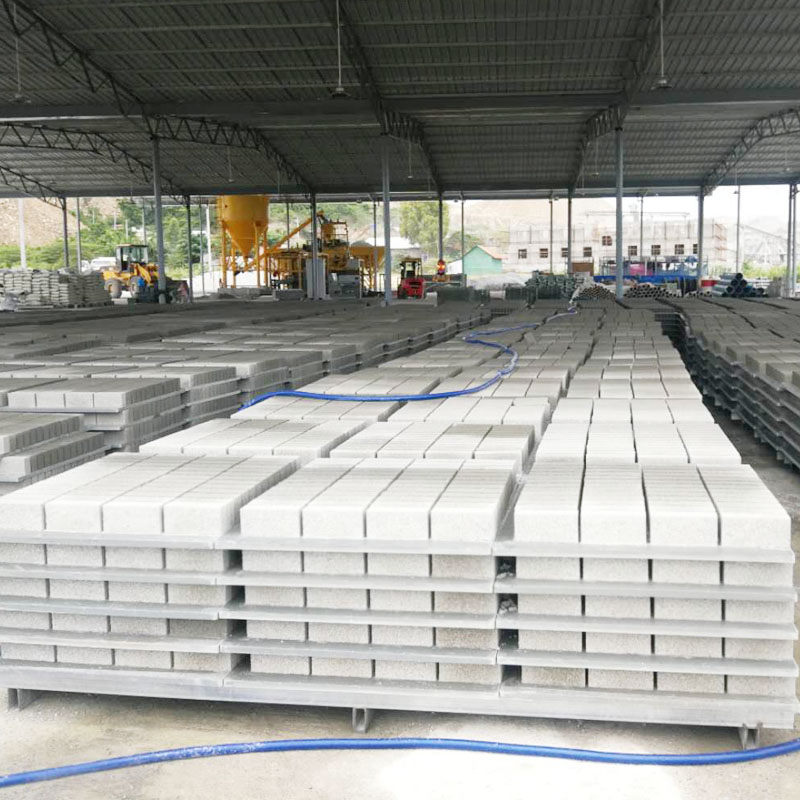

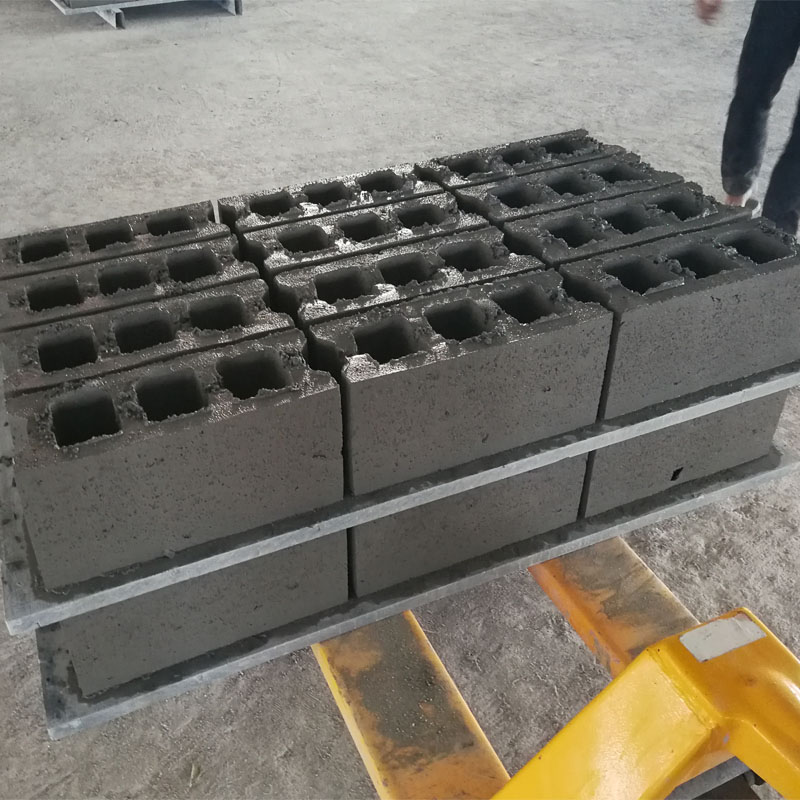

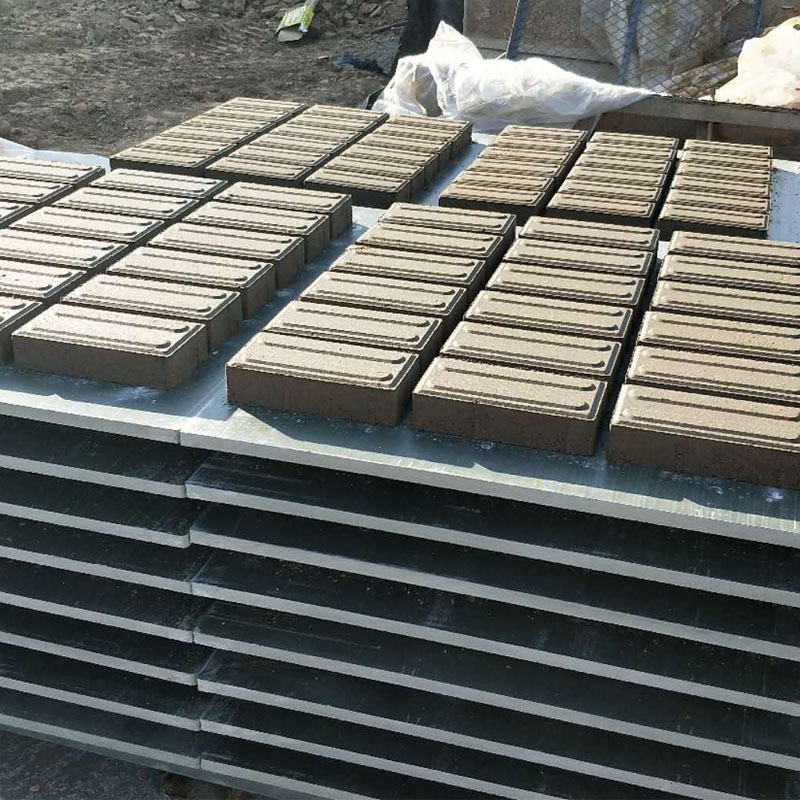

HGMA QT15-15 automatic hollow brick machine PLC full-automatic control system has no one to operate in the whole process, high degree of automation and low labor intensity, so as to improve the output and quality of cement bricks. One machine can be used for multiple purposes, and different molds can be replaced to make standard bricks, bread bricks, road tiles, tree pit bricks and other special-shaped products.

Qt15-15 automatic hollow brick machine features:
1. It is equipped with an independently developed control system, which is seamlessly connected with the hydraulic system and mechanical parts to realize electromechanical hydraulic integrated control and make the whole machine run efficiently,To achieve the best working condition.
2. Powerful self diagnosis and guidance function, real-time monitoring and display the system operation status, timely shutdown and alarm prompt in case of fault. And provide solutions Scheme and treatment method.

3. It adopts imported PLC programmable controller, color touch screen, more humanized operation interface, parameter guidance and other practical functions to make users light Loose man-machine dialogue.

4. It adopts German high-performance hydraulic technology and dual hydraulic drive system. Stronger vibration, shorter forming cycle and higher product strength.
5. The original high-performance vibrating system of West Germany is adopted, which has strong vibration, short forming cycle and high product compactness.

6. The suspension bi-directional positioning hopper car is adopted, with small running resistance, so as to solve the influence of pallet thickness error on products.

QT15-15 automatic cement brick machine Technical parameters:

Forming mode	Vibration pressure forming
Vibration frequency	3800-4500
Rated pressure	31.5mpa
Forming cycle	15-20(s)
Exciting force	180KN
Installed capacity	64(kw)
Machine weight	15200（kg）
Appearance specification	11500×4750×2800(mm)
Pallet specification	1350×1100×30(mm)

Hot Tags : cement brick machine brick machine QT15-15 brick machine cement brick machine suppliers China cement brick machine

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

QT4-40 Manual brick making machine

QT4-40 making machine running automatically, using hydraulic transmission. double cloth, virbation pressure, height and compactness of the function of control, the exciting force. simple operation, easy maintenance and operation.

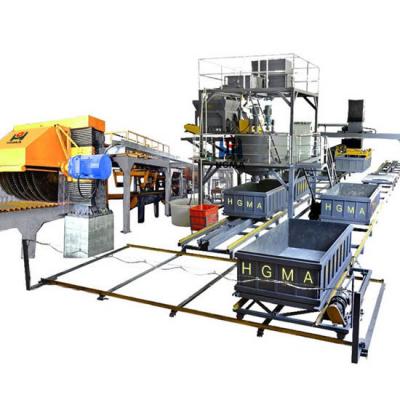

Fully Automatic Servo Concrete Block Making Machine QT18-18

Qt18-15 full-automatic servo brick machine production line maintains automatic, simple, orderly and efficient block brick production and manufacturing in one step.

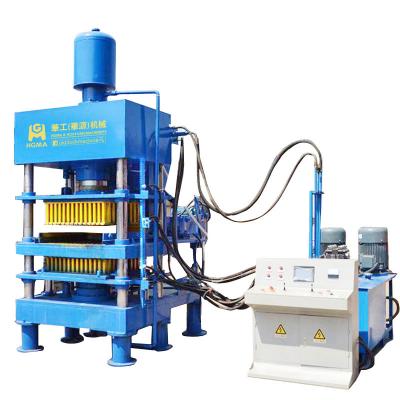

400t powder forming hydraulic press machine

The powder forming four column hydraulic press is economical and practical. The hydraulic control adopts the integrated system of plug-in setting valve to reduce the discharge point. It has reliable movement, durability and long service life. The first is the constant pressure realization and the secondary development technology of constant pressure program, which has the function of ensuring the differential pressure delay. The stroke of working pressure can be adjusted within the specified range. The centralized control of buttons can realize manual There are three operation forms: semi-automatic and automatic. Specification Unit 400T Nominal force KN 4000 Max. pressure of liquid MPa 25 Stroke of slider mm 500 Max. opening height mm 1400 Working table size mm*mm 1000x800 Speed of slider Descent speed mm/s 340 Working speed mm/s 16-24 Return speed mm/s 220 Motor power KW 22x2

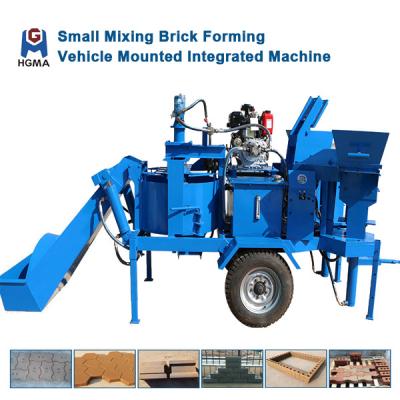

Vehicle mounted small brick making machine
