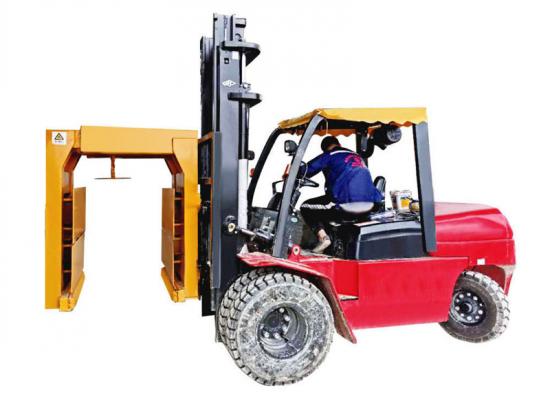

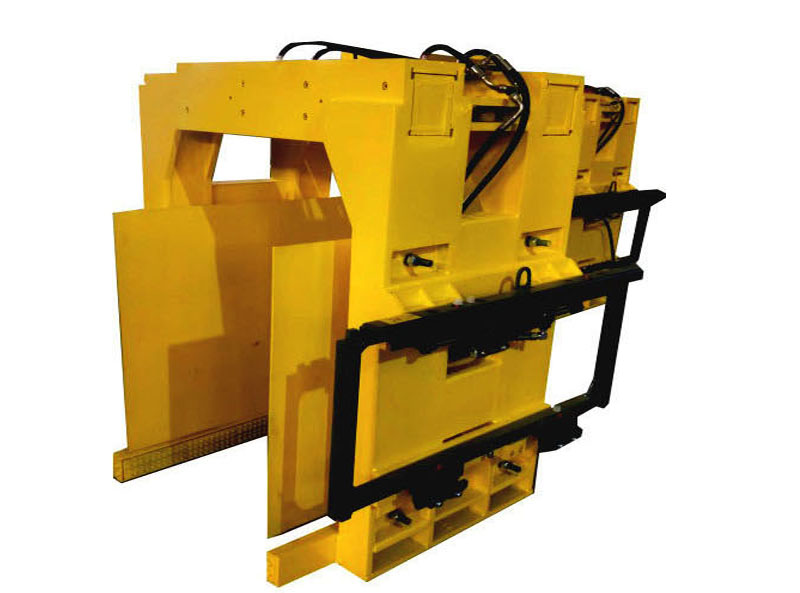

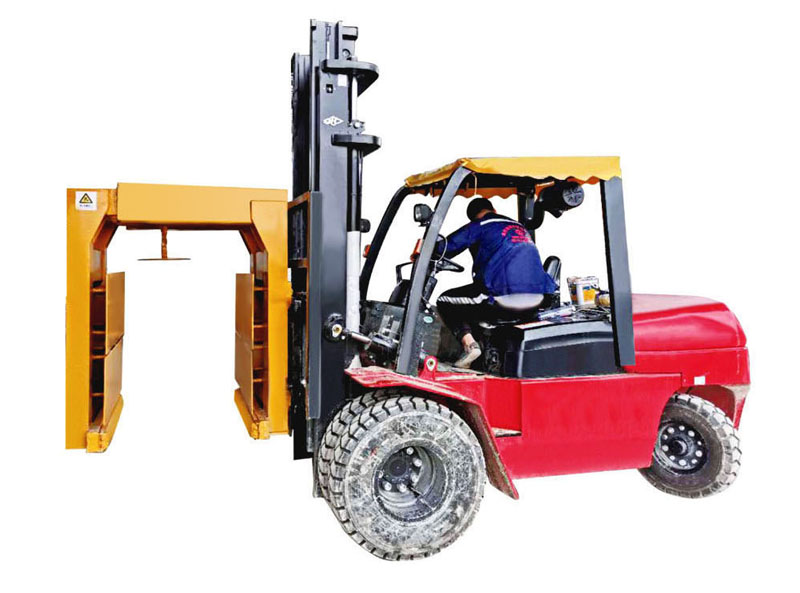

The brick clamping forklift can efficiently clamp all kinds of cement bricks, and is widely used in palletless handling, stacking and loading operations of aerated concrete, autoclaved bricks, sintered bricks, unburned bricks, concrete prefabricated parts and other industries. Compared with similar products, HGMA cement brick forklift has the following characteristics:
1. It adopts the overall frame of all-steel structure, which has high strength and can meet the needs of users for intensive operations.
2. The clamping arm is designed according to the force, which is firm and reliable, with large clamping force, large number of clamps and long service life.
3. It saves a lot of manpower and material resources, and also reduces the damage rate of products under the premise of improving the loading and unloading rate.
4. The design is flexible and can be installed on any spreader.
5. The optimized structural layout ensures a good view.
|
TECHNICAL SPECIFICATIONS |
|
|
Arm range |
680-1150(mm) |
|
Clamping width |
950mm |
|
Maximum Brick Size |
100x950x1000(WxLxH) |
|
Carrying capacity |
2000KG |
|
The number of bricks held at a time |
500-800 standard bricks, 40 hollow bricks |
|
The highest level of holding bricks |
10 layers of standard bricks, 5 layers of hollow bricks |
|
sideways distance |
10mm |
