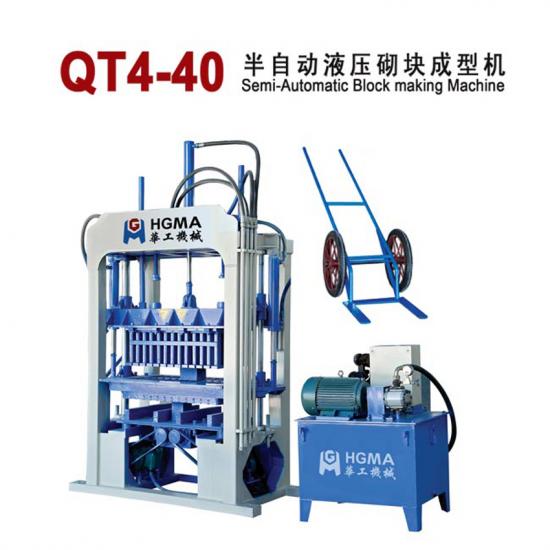

QT4-40 making machine running automatically, using hydraulic transmission. double cloth, virbation pressure, height and compactness of the function of control, the exciting force. simple operation, easy maintenance and operation.
QT4-40 block making machine is according to china's national conditions, combining the maiority of the new and old customers device improved design of a new machine with the production og high quality, durablity strong, high production efficiency, suitable for the production of various high strength environmental protection brick, chain blocks, color tile, parking lot grass brick, hollow brick, ets. QT4-40 making machine running automatically, using hydraulic transmission. double cloth, virbation pressure, height and compactness of the function of control, the exciting force. simple operation, easy maintenance and operation.
Main Technical Parameters
| cycle time | 40-45s | virbation type | hydraulic virbation | |||||
| motor frequency | 50HZ | total power | 15.5KW | |||||
| pallet size | 850*560*20MM | gross weight | 1500KG | |||||
| rated pressure | 8.5MPA | machine size | 800*1600*2000MM | |||||
| block specification | cycle time | production per mould | production per shift(8 hours) | |||||||
| multi-holes block | 240*115*90mm | 12pcs | 4200-6000pcs | |||||||
| standard block | 240*115*51mm | 26pcs | 9100-13000pcs | |||||||
| hollow block | 390*190*190mm | 4pcs | 1400-2000pcs | |||||||
Leave A MessageThe vehicle mounted brick making machine has the comprehensive function of mixing brick making and forming. Two molds and two operation platforms can produce two bricks at a time. The hydraulic cooling system is controlled by the temperature control switch and operates automatically according to the hydraulic oil temperature to reduce energy consumption. The finished product molding is driven by the hydraulic system and the brick making is completed by pressure.
QT4-30 block making machine is according to china's national conditions, combining the maiority of the new and old customers device improved design of a new machine with the production og high quality, durablity strong, high production efficiency, suitable for the production of various high strength environmental protection brick, chain blocks, color tile, parking lot grass brick, hollow brick, ets.
QT3-25 Semi-Automatic Block Machine，QT3-25 block making machine is according to china's national conditions, combining the maiority of the new and old customers device improved design of a new machine
QT4-40 making machine running automatically, using hydraulic transmission. double cloth, virbation pressure, height and compactness of the function of control, the exciting force. simple operation, easy maintenance and operation.
As a multi-purpose machine, can produce normal bricks, hollow bricks, multi-holes' bricks by exchanging mold.The machine is on the basis of original concrete block machine, with technological innovation and development. It has rational design, excellent performance, and equipped with powerful vibration motor.
QTJ4-45 manual hollow concrete block machine is manufactured on the base of technical modification to the original block shaping machines,that is changing the former one -time-vibration into twice-vibration of moulding core.so ,the block density becomes higher,shaping speed quicker and block strenght more even, this model of machine can be suitable to the customers who have any kinds of existing cement working sites, and the consumption pallests can be reduced.
QT6-15 cement brick machine is the most popular non burning brick machine in the market. The main features are: large output, many molds, reasonable production of all kinds of bricks, and low investment pressure. It is the most cost-effective model and the best-selling model
The powder forming four column hydraulic press is economical and practical. The hydraulic control adopts the integrated system of plug-in setting valve to reduce the discharge point. It has reliable movement, durability and long service life. The first is the constant pressure realization and the secondary development technology of constant pressure program, which has the function of ensuring the differential pressure delay. The stroke of working pressure can be adjusted within the specified range. The centralized control of buttons can realize manual There are three operation forms: semi-automatic and automatic. Specification Unit 400T Nominal force KN 4000 Max. pressure of liquid MPa 25 Stroke of slider mm 500 Max. opening height mm 1400 Working table size mm*mm 1000x800 Speed of slider Descent speed mm/s 340 Working speed mm/s 16-24 Return speed mm/s 220 Motor power KW 22x2
