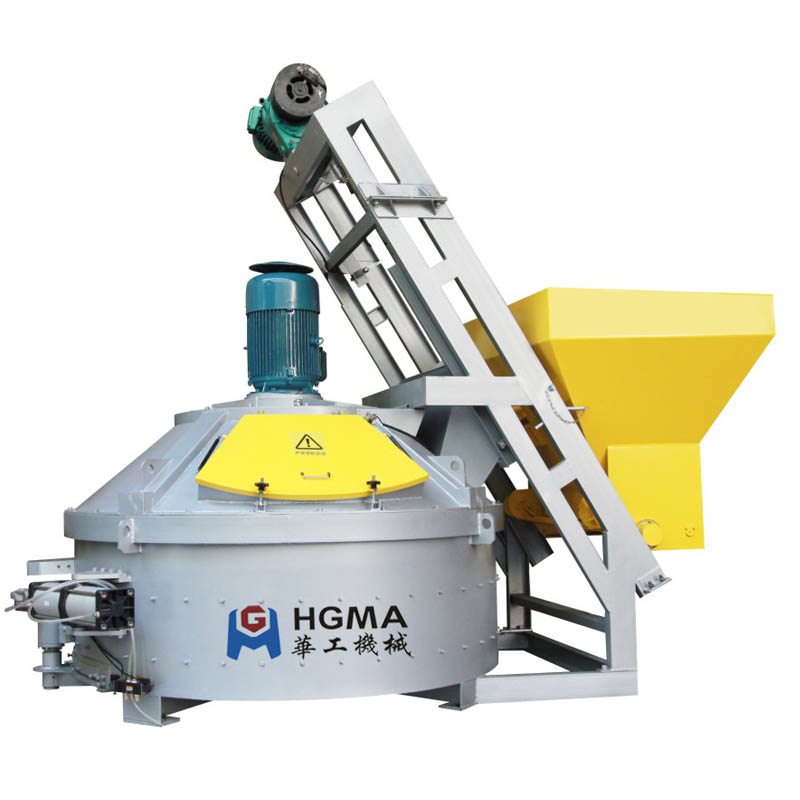

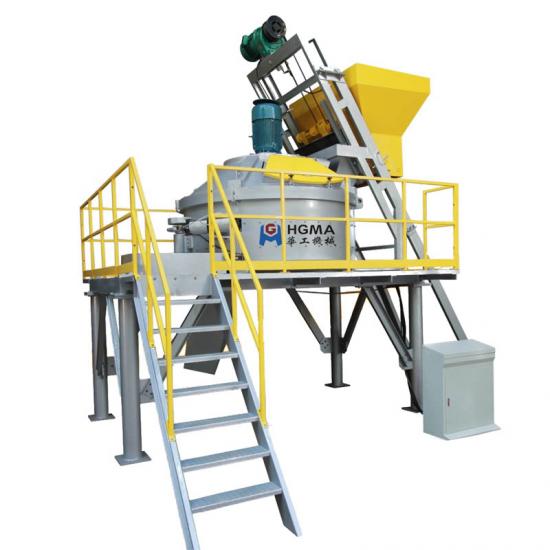

JN series vertical shaft planetary concrete mixer

The mixing principle of the planar conrete mixer determines its higher mixing efficiency than the ordinary mixer.The research shows that the planetary mixer can be applied to most materials with viscosity of 1 million pcs and solid content below 90%. With a variety of mixers and other auxiliary devices, it can completely replace most ordinary mixers in the market.

Share To :

Inquire Now

Product Details

HGMA vertical shaft planetary mixer can mix materials of various attribute categories, and a unique material flow is formed in the mixing process. Therefore, the vertical shaft planetary mixer can not only complete single high uniformity mixing, but also carry out the mixing process with kneading and kneading. The vertical shaft planetary type has strong processing capacity, and the abundant model design and corresponding performance can meet various processing capacity.

Application fields of planetary conrete mixer: it is widely used in dry hard, semi dry hard and plastic concrete, fiber concrete, light concrete, cement pipe, electric pole, prefabricated component, block brick, pipe pile, subway segment, refractory castable, metallurgy, sodium silicate, ceramic plate, ceramsite and other industries.

Conrete Technical Data

ITEM/ Capacity	Feeding Capacity (L)	Output Capacity (L)	Feeding Weight (kg)	Mixing Power (kW)	Mixing Star* Blade	Side Scrape/ Discharge Scrape	Weight (kg)	Lifting Power (kw)	Dimension LWH (mm)
JN250	375	250	600	11	1*2	1/1	1500	3	1 86016501780
JN330	500	330	800	15	1*2	1/1	2000	4/5.5	18701 8701855
JN500	750	500	1200	18.5	1*2	1/1	2400	4/5.5	223020801880
JN750	1125	750	1800	30	1*3	1/1	3900	7.5	255523062268
JN1000	1 500	1000	2400	37	2*2	1/1	5500	11/15	289126022237
JN1250	1875	1250	3000	45	2*2	1/1	6000	11/15	305827562395
JN1500	2250	1500	3600	55	2*2	1/1	6500	15/22	3223* 2902*2470
JN2000	3000	2000	4800	75	3*2	1/2	9200	18.5/22	362532302695

Hot Tags : planetary mixer concrete mixer cement mixer
